OVERVIEW
-

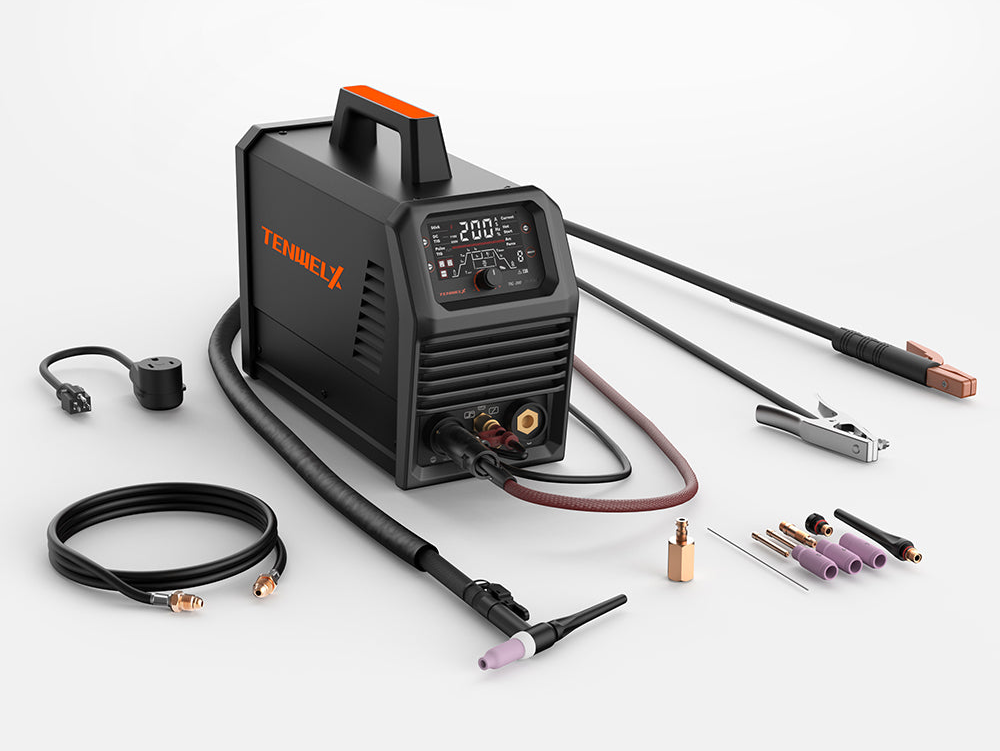

The TENWELX NX Series TIG 200 DC Pulse is a compact, air-cooled TIG/Stick inverter designed for precise DC welding applications. It delivers stable arc performance, accurate output control, and high efficiency for both professional and hobby fabrication tasks .
-
DC TIG or DC Pulse TIG supports steel, stainless steel, copper, bronze, and other ferrous and non-ferrous metals suitable for direct-current welding. Stick mode accommodates rutile, stainless steel, basic, and bare electrodes up to 5.0 mm.
HIGHLIGHT FEATURES
Memory Function - Memory function stores up to 10 sets of welding parameters for quick recall.
Adjustable arc parameters - Including start/end tapering, slope control, background current, and pulse settings—provide finer control and more consistent welding results.
Key Parameters:
● 1-amp increments-Precise Foot Pedal Contro
● 0.5-999Hz - DC Pulse Range
● Up to 250Hz - High AC Frequency
3-Year Warranty & U.S. Sales Support: TENWELX provides a 3-year warranty, and all products and services are backed by our U.S. support
APPLICATION
| Automotive & Motorsports |
Welding Training & Education |
Tubing and Sheet Metal |
|
Workshop & Home Project |
Construction & Structure |
Metal Art & Custom Fabrication |
WELDABLE METALS
| Stainless Steel |
Carbon Steel |
Cast Iron |
| Copper |
Alloy Steel |
|
DIMENSIONS
|
Overall Length |
Overall Width |
|
Overall Height |
Weight |
PROCESSES
| DC TIG (GTAW-DC) |
DC Pulse TIG (GTAW-DC-Pulse) |
Stick (SMAW) |
Spot Welding |
GENERAL SPECIFICATIONS
| Title | TIG 200 DC with Pulse |
| Input Voltage | AC 110/220V/1Ph ± 10% |
| TIG Output Range | 5~200 A |
| Stick Output Range | 20~180 A |
| No-load Voltage | 70 V |
| TIG Rated Output ( 25℃) | 40%@200A/18V & 100%@140A/15.6V |
| Pulse Frequency | 0.5 ~ 999 Hz |
| Pulse Duty Cycle | 0 ~ 90 % |
| Efficiency | 80 % |
| Power Factor | 0.93 |
| Warranty | Limited 3 Years |
